Western Blot: HeLa Chloroquine Treated / Untreated Cell Lysate [NBP2-49689]

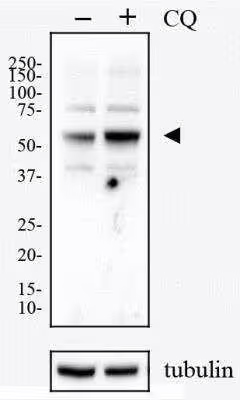

Western Blot: HeLa Chloroquine Treated / Untreated Cell Lysate [NBP2-49689] - HeLa cells were treated with (+) or without 50 uM (-) of Chloriquine (CQ) for 24 hours. Total cell lysates were prepared and separated on a 12% gel by SDS-PAGE. Protein was transferred to PVDF membrane and blocked in 5% non-fat milk. The membrane was then probed with 2 ug/ml of p62/SQSTM1 antibody (NBP1-42821) in 1% milk and detected with an anti-rabbit HRP secondary antibody using chemiluminescence. Note the upregulation of p62 (arrowhead) in response to chloroquine treatment and the blockage of autophagy.

Western Blot: HeLa Chloroquine Treated / Untreated Cell Lysate [NBP2-49689]

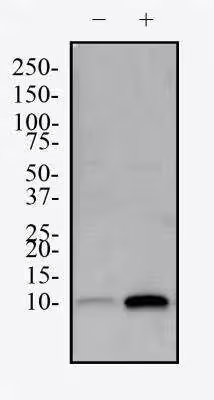

Western Blot: HeLa Chloroquine Treated / Untreated Cell Lysate [NBP2-49689] - 10 ug of Chloroquine treated (+) and untreated (-) HeLa lysates in 1x Laemmli sample buffer (NBP2-49689) were separated on a 4-15% gel by SDS-PAGE, transferred to 0.2 um PVDF membrane and blocked in 5% non-fat milk in TBST. The membrane was probed with 1 ug/ml monoclonal anti-LC3 (NBP246892) and detected with an anti-rabbit secondary antibody using chemiluminescence.

Western Blot: HeLa Chloroquine Treated / Untreated Cell Lysate [NBP2-49689]

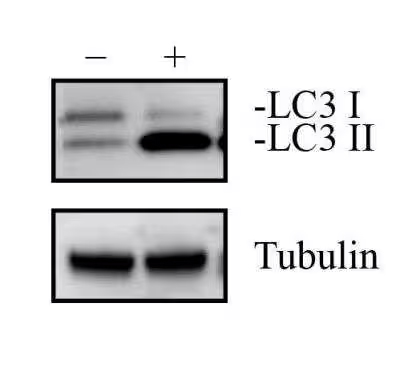

Western Blot: HeLa Chloroquine Treated / Untreated Cell Lysate [NBP2-49689] - Human Cervical carcinoma cells (HeLa) were treated with (+) and without (-) 50 uM Chloroquine overnight. Whole cell protein lysates were prepared in 1x Laemmli sample buffer and approximately 10 ug of each lysate (NBP2-49689) was separated on a 4-15% gel by SDS-PAGE, transferred to 0.2 um PVDF membrane and blocked in 5% non-fat milk in TBST. The membrane was probed with 1 ug/ml anti-LC3 (NB100-2220) and 1 ug/ml anti-alpha tubulin (NB100-690) as a loading control, and detected with the appropriate secondary antibodies using chemiluminescence.
